Plug and Play
124 Port 2.5 Gb Coax Network Switch
124 Port Switch Shown; 31 and 248 Port Coax Ethernet Network Switches Available
The Intercept™ EO solution delivers Multigigabit data rates over existing legacy coaxial cabling for rapid and economical deployment.
Setting up your 2.5 Gb Coax Network Switch is as easy as One, Two, Three!
Connect the Network Controller (31, 124 or 248 Port) to the building's existing coax network.
Provide an Uplink to the Network Controller below
Connect the 2.5 Gb Customer Premise Modules (see image below) in each home to the building's existing coax network and to their in-home router.
Your customers will be surfing the web in minutes! It's that easy.
Pre-Install Considerations
Uplink & Management
Uplink Speeds (10G or 1G, or anything in between)
In-Band or Out of Band Managment
Coax Network Topography & Spectrum
Homerun or Serial Topography
Low vs High Bandwidth
Determine Your Uplink
Fiber Optic
PON
AON
5G
Metro, Urban & Suburban Areas
ATT, Verizon & T-Mobile
FWA
Rural
LEO
Off-Grid
The Coax Network Switch is so versatile it is capable of working with any ethernet uplink.
Do you have a FTTB deployment, but still have coax throughout the building, no problem.

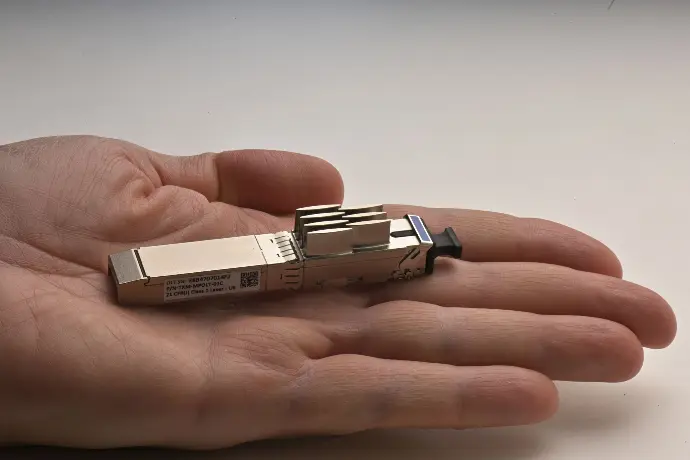

Regardless of the uplink source, PON\AON, 5G, FWA or LEO wireless devices, insert either multi-rate SFP+ 10G-T or SFP+ ONU; you'll be surfing in no time.
Scale Your Subscribers
Coax Network Switches are available in the following models
31 Customer Premise Modules per 1 Port Network Controller (1:31)
124 Customer Premise Modules per 4 Port Network Controller (4 X 1:31)
248 Customer Premise Modules per 8 Port Network Controller (8 X 1:31)
Network Controllers can be daisy-chained via the SPF+ port or via the RF - Port to add subscriber
31 Port
EONC-2A01
Network Controller - Switch
10G Uplink
1 X 1:31
Connect up to 31 Customer Premise Modules per Network Controller
2.5 Gb Customer Premise Module
Connect the Customer Premise Module to the buildings existing coax network and to home router; your customers will be surfing 2.5Gbps in no time.
124 Port
EONC-2A04
Network Controller - Switch
10G Uplink
4 X 1:31
Connect up to 124 Customer Premise Modules per Network Controller
2.5 Gb Customer Premise Module
Connect the Customer Premise Module to the buildings existing coax network and to home router; your customers will be surfing 2.5Gbps in no time.
248 Port
EONC-4A08
Network Controller - Switch
10G Uplink
8 X 1:31
Connect up to 248 Customer Premise Modules per Network Controller
2.5 Gb Customer Premise Module
Connect the Customer Premise Module to the buildings existing coax network and to home router; your customers will be surfing 2.5Gbps in no time.
Install the Customer Premise Modules in Each Apartment
Install the Network Controller at Every Building
Link all your Coax Network Switches to our 10G or 25G Outdoor Switch
Coax Network Topography
Text
Splitters
Directional Couplers
Multitaps
Network Spectrum
Go Low or Go High
Depending on the buildings coax infrastructure you will need to determine which bandwidth lanes your customer will be surfing in. Customers will be able to surf 2.5Gb in either configuration
2.5 Gb CPE
Low
Customer Premise Module
400 - 900 MHz - Low
EOPMC2500-L
2.5 Gb CPE
High
Customer Premise Module
1125 - 1675 MHz - High
EOPMC2500-H
2.5 Gb CPE WiFi 5
Low
Customer Premise Module
400 - 900 MHz - Low
EOPMC-W5-L
2.5 Gb CPE WiFI 5
High
Customer Premise Module
1125 - 1675 MHz - High
EOPMC-W5-H
SFP+ Management and Configuration
Determine the upstream port; will it be SFP+ Port One or SFP+ Port Two or Gigabit Ethernet
Know what is plugged into the SFP+ ports
Port Mapping
The Coax Network Switch
is Really a
Network Controller
The Coax network Switch is really a Network Controller. The Network Controller's Cloud software offers provisioning, monitoring and trending capabilities through an advanced UI or REST-API and\or SNMP allowing for complete control of QoS, CoS, MEF OAM .
